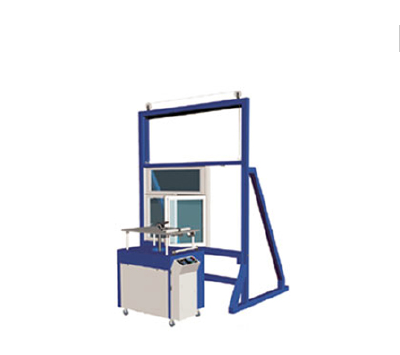

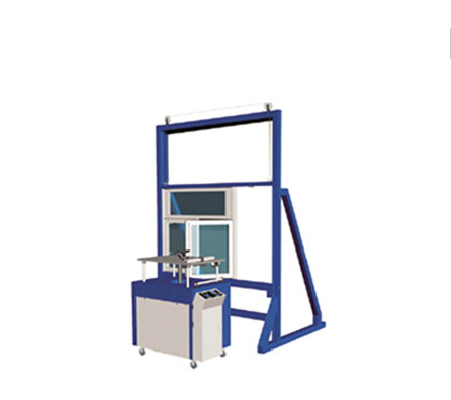

CJS-2124 door and window mechanical property detecting instrument

CJS-2124 door and window mechanical property detecting instrument

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: QINGDAO
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-10-11
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  JINAN
  • Brand Name:  HESION
  • Model Number:  CJS-2124

Product description:

First, the use of equipment:

This machine is a new product which is used for testing the physical properties of doors and windows. It is suitable for the determination of hanging weight, warping, bending, twisting, bending, twisting, bending, twisting and bending test.

Two, the main test items:

1, measuring the force required to operate the switch;

2. The deformation and damage of the window when the window is not under normal stress;

3, warping or bending deformation test;

4, twisting test;

5, the diagonal deformation test;

6, measuring the ability to withstand the window to close;

7, the determination of the switch fatigue performance of doors and windows.

Three, the implementation of standards:

1, 11793-2008 GB/T "no plastic polyvinyl chloride (PVC-U) plastic doors and windows of mechanical properties and weathering test method";

2, 9158-88 GB/T "construction window to withstand mechanical and mechanical testing methods";

3, JG192-2006 "building doors and windows repeatedly open and close performance testing method";

Four, the main technical indicators:

1, the maximum stress value: (0 ~ 500) N, showing the accuracy of the value: 0.1N, test force accuracy of 0.5;

2, the pressure of the air pressure: 0.4-0.7Mpa;

3, measuring the maximum displacement deformation: 0-50mm, precision 0.01mm;

4, flat open window switching speed: (5 ~ 20) times /min;

5, sliding window switching speed: 15m/min;

6, the number of fatigue test: one hundred thousand times can be arbitrarily set, automatic shutdown;

7, the window specimen number is less than or equal to 3 parts;

8, the maximum size of the test pieces: 2100 x 2400 (mm);

9, sample storage conditions: (28 ~ 18) under the conditions of place for at least 16 hours;

10, size: (equipment working space) long x width x x x 4600 x 3700mm x =3500;

11, power supply: 380V 10%.

Five, product function and characteristics:

1, the sample holder is convenient, operation is simple;

2, data measurement accuracy.


  • Place of Origin:  JINAN
  • Brand Name:  HESION
  • Model Number:  CJS-2124
