The main purpose:

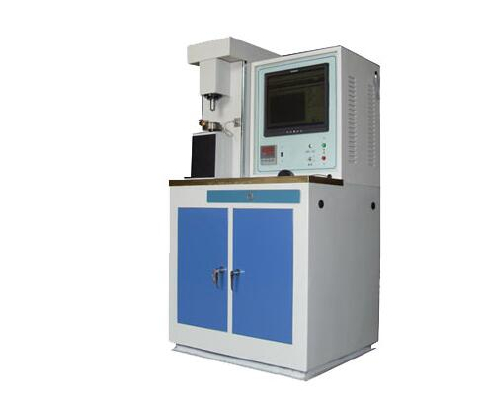

MMW-1 vertical universal friction and wear tester under a certain contact pressure, can simulate rolling, sliding or rolling sliding sports complex, the completion point, line, surface friction simulation tests. It can be used to evaluate the friction and wear properties of lubricants, metals, plastics, coatings, rubber, ceramics and other materials. Users can meet the traditional petrochemical industry research and development, testing of high-grade series of hydraulic oil, engine oil, gear oil demand, but also to meet the development of new materials, new technology research user needs assessment simulation testing.

★ Features:

The machine import process control theory, computer and industrial control configuration software technology, network technology closely; and the use of integrated design, embedded industrial control computer, configuration software, acquisition module, actuator combination in a frame inside, complete the entire test process control, all test operations can be carried out in the computer's main screen, is the first application of the technology of friction and wear tester with flexible configuration control, many kinds of friction, speed range, able to simulate high temperature, high degree of automation, using easy to adjust and so on.

Technical Parameters:

No. Item Specifications

1 test force working range 10 ~ 1000N (stepless)

2 Test Force showed the relative error of ± 1%

3 friction torque measurement range 2.5N.m

4 friction torque relative error of ± 2%

5 Spindle speed range 1 ~ 2000r / min

6:00 using the reduction gear: 0.05 ~ 20r / min

7 test medium oil, water, mud, and other abrasive

8 Temperature control range Room temperature ~ 300 ℃

9 testing machine spindle and lower auxiliary plate

Maximum distance> 75mm

10 Time control 10s ~ 9999min

11 Computer and data processing using computers and industrial control configuration software to realize the whole testing process and full control, real-time display of various parameters, automatically record the friction -? Time curve and temperature - time curve.

12 Dimensions 860 × 740 × 1560mm

13 machine weight 650kg
