The main purpose:

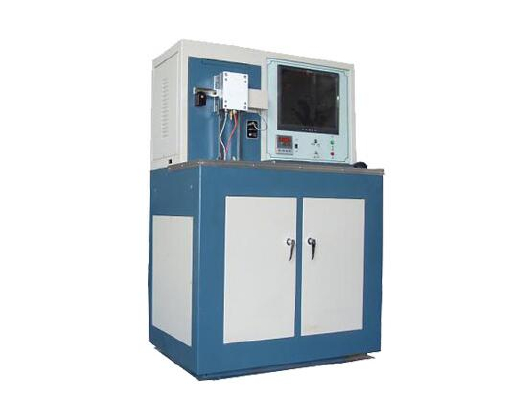

MRH-3 high-speed ring block wear test machine with sliding friction, soaked in oil lubrication condition, the lubrication performance evaluation of lubricants, especially suitable for high-grade automotive gear oil anti abrasion performance of the simulation evaluation, but also can be used for various metal and non-metal materials and coating the wear performance of the. This machine can be used for the determination of friction force, friction coefficient, connecting the computer, recording the temperature time curve, friction time curve. The machine is equipped with high precision measuring device can measure the friction, computer screen display, side wear spot measuring and recording.

* technical parameters:

Item name technical index

1 maximum test force 3000N

2 maximum determination of friction force 300N

3 the friction force is 2%.

4 test force control method step motor closed loop control test force

5 spindle speed range 100 ~ 2000r/min (5000r/min) stepless adjustable

6 speed control accuracy of 10r/min

7 test oil temperature range of room temperature to 100

8 test time control range 10 ~ 9999s (min)

9 standard test ring size 49.22mm * 13.06mm.

10 standard test block size 12.32mm * 19.05mm

11 exterior dimension 1300mm * 700mm * 1340mm

12 the weight of the whole machine 800kg
