Product description:

First, the main use:

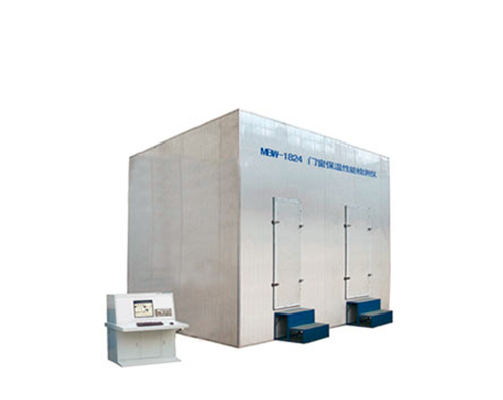

Test method for insulation performance of building external windows detector based on the GB/T8484-2008 "building doors and windows, insulation performance rating and testing methods", for the detection of the thermal insulation performance of building doors and windows of building materials. The whole process of unmanned automatic test, automatic recording and storing test data, automatic calculation of the experimental data at the end of the experiment, on the basis of automatic analysis, also can analyze the correction results of artificial intervention, and improve the accuracy of analysis. Print test report, temperature curve and original record.

Principle: Based on the principle of steady heat transfer, the thermal insulation performance of windows is detected by the calibration method. One side of the test piece is a hot box, which simulates the winter indoor climate condition of the heating building and the other side is the cold box. An environment of incubator, standard external environment simulation test.

Two, product features:

1, fully automatic fault free operation;

2, real-time temperature curve monitoring, at any time call, observation of hot room, cold room, room temperature changes in the environment;

3, advanced high quality temperature sensing elements, improve system measurement accuracy, the system runs stably and reliably;

165, 4 temperature measurement points, with the sensor error function;

5, according to the classification and detection of standard Windows add anti condensation factor, classification and detection of glass and window heat transfer coefficient;

6, the whole process of storage test record, print the original data.

Three, the main technical indicators:

1, hot room temperature fluctuation range: 20 C 0.1;

2, cold room temperature fluctuation range: -20 C 0.3;

3, ambient room temperature fluctuation range: 20 C 0.5;

4, anti condensation factor detection: hot chamber relative humidity is less than 20%;

5, temperature measurement points: 165;

6, temperature measurement accuracy: 0.0625;

7, ambient box size (* W * H * L) (mm):5100 x 4000 x 4400;

8, power supply: 380V 10%, 50Hz;

9, the maximum size of the sample (mm):1800 * 2400.
